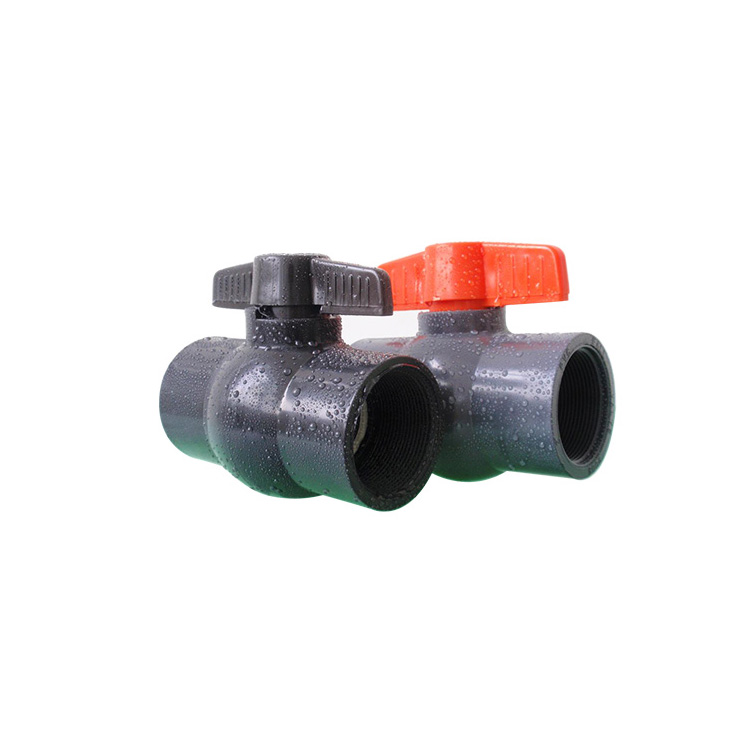

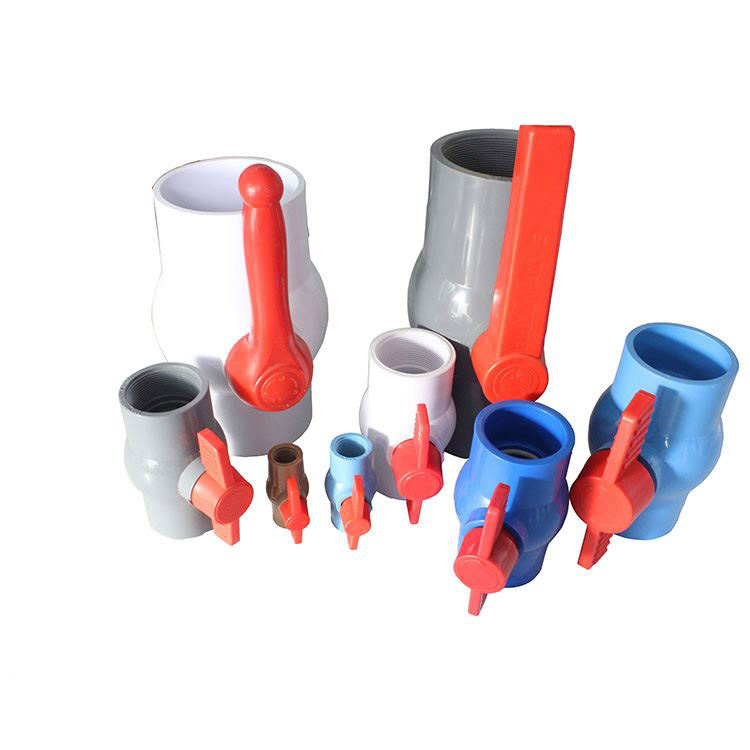

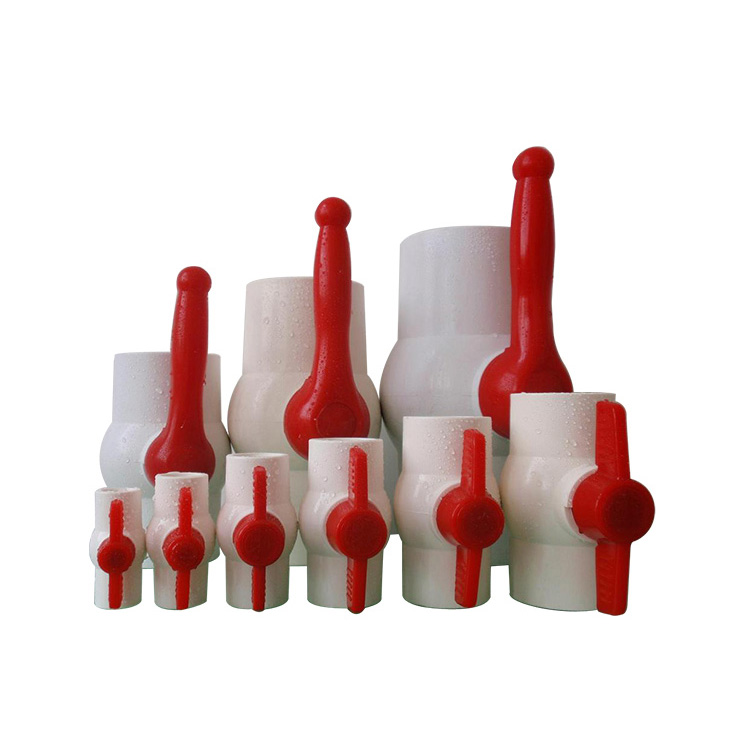

PVC Compact Ball Valves
US $0.158-10 / Piece | 1000 Piece/Pieces (Min. Order)
Supply Ability:2000000 Piece/Pieces per Month
Port:Ningbo/Tianjin/Qingdao
Supply Ability:2000000 Piece/Pieces per Month
Port:Ningbo/Tianjin/Qingdao
| Size | 1/2" - 4" |
| Joint End | Socket(ANSI/DIN/JIS/BS) |
| Thread(NPT/BSPT) | |
| Working Pressure | 1/2" - 2" PN16=232PSI |
| 2-1/2" - 4" PN10=150PSI |
Leadwin PVC Compact Ball Valves is Widely used for irrigation,construction,water treatment,solar water system ,fountain...etc.1/2''-6''
Leadwin PVC Compact Ball Valves is reall weight light and Greens Environmental Protection.
We have nice market for USA,South America ,North America Middle east and Asia
Leadwin PVC Compact Ball Valves is reall weight light and Greens Environmental Protection.
We have nice market for USA,South America ,North America Middle east and Asia
Product Detail Information
PVC Compact Ball Valves Quick Details
| Standard or Nonstandard:Standard | PVC Compact Ball Valves Model Number:AC9120 |
| PVC Compact Ball Valves Structure:Ball | PVC Compact Ball Valves Brand Name:LW |
| PVC Compact Ball Valves Pressure:PN10,PN16 | PVC Compact Ball Valves Application:Agriculture irrigation |
| PVC Compact Ball Valves Power:Manual | PVC Compact Ball Valves Color:white/grey/Customized |
| PVC Compact Ball Valves Material:Plastic | PVC Compact Ball Valves name:pvc ball valve dn15-dn100 |
| Temperature of Media:Normal Temperature | PVC Compact Ball Valves Handle shape:Butterfly |
| PVC Compact Ball Valves Media:Water | PVC Compact Ball Valves Handle color:any color is OK to produce |
| PVC Compact Ball Valves Port Size:1/2"-4" (20mm-110mm) | PVC Compact Ball Valves Lifetime:5-10years Indoor use |
| Place of Origin:Zhejiang, China (Mainland) | PVC Compact Ball Valves Joints:Socket Joints / Thread Joints |
| PVC Compact Ball Valves Model Number:AC9120 | PVC Compact Ball Valves Usage:for Water Supply, Drainage or Agriculture |
PVC Compact Ball Valves features
| Brand New Material Manufacture | Resistant to Corrosion |
| Aging-Resistant | Uvioresistant |
| Easy to Install | Extra Lightly |
| Greens Environmental Protection | Fast Delivery |
| Rest Assured | Quality Guarantee 10 Years |
PVC Compact Ball Valves Specification of material
| NO. | Part | Material | QTY |
| 1 | BODY | UPVC,CPVC | 1 |
| 2 | STEM O-Ring | EPDM,FPM(NBR) | 1 |
| 3 | STEM | UPVC,CPVC | 1 |
| 4 | BALL | UPVC,CPVC | 1 |
| 5 | SEAT SEAL | TPE,TPVC,TPO | 2 |
| 6 | CAP | PVC,ABS | 1 |
| 7 | HANDLE | PVC,ABS | 1 |
| 8 | SCREW | SS304,STEEL | 1 |

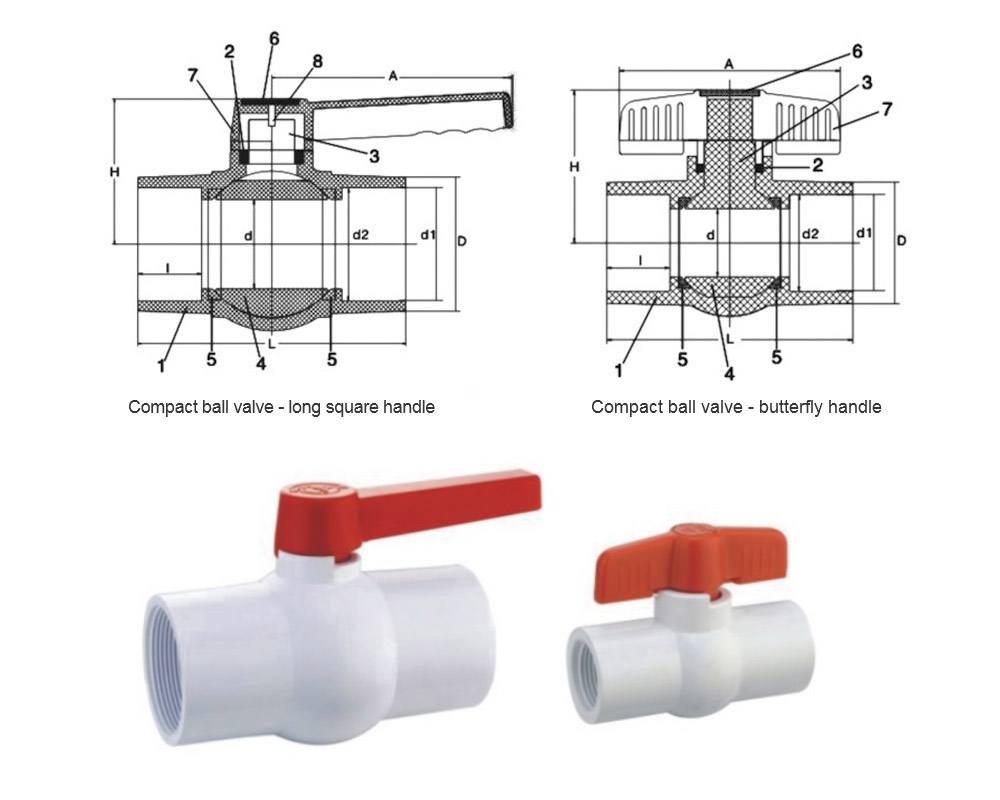

PVC Compact Ball Valves Model size parameter comparison table
| DIMENSION | Unit | |||||||||||
| MODEL | DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | ||
| SIZE | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" | Inch | ||
| thd./in | NPT | 14 | 14 | 11.5 | 11.5 | 11.5 | 11.5 | 8 | 8 | 8 | mm | |
| BSPT | 14 | 14 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | mm | ||
| JIS | I | 20 | 23 | 25 | 27 | 31 | 34 | 45 | 50 | 55 | mm | |
| d1 | 22.3 | 26.3 | 32.33 | 38.43 | 48.46 | 60.56 | 76.6 | 89.6 | 114.7 | mm | ||
| d2 | 21.7 | 25.7 | 31.67 | 37.57 | 47.54 | 59.44 | 75.87 | 88.83 | 113.98 | mm | ||
| ANSI | I | 20 | 23 | 25 | 27 | 31 | 34 | 45 | 50 | 55 | mm | |
| d1 | 21.54 | 26.87 | 33.65 | 42.42 | 48.56 | 60.63 | 73.38 | 89.31 | 114.76 | mm | ||
| d2 | 21.23 | 26.57 | 33.27 | 42.04 | 48.11 | 60.17 | 72.85 | 88.7 | 114.07 | mm | ||
| DIN | I | 20 | 23 | 25 | 27 | 31 | 34 | 45 | 50 | 55 | mm | |
| d1 | 20.3 | 25.3 | 32.3 | 40.3 | 50.3 | 63.3 | 75.3 | 90.3 | 110.4 | mm | ||
| d2 | 20 | 25 | 32 | 40 | 50 | 63 | 75 | 90 | 110 | mm | ||
| d | 15 | 19 | 24 | 30 | 34 | 45 | 55 | 70 | 85 | mm | ||
| H | 37 | 55 | 66 | 73 | 81 | 91 | 99 | 121 | 134 | mm | ||
| A | 68 | 80 | 94 | 100 | 110 | 136 | 170 | 210 | 236 | mm | ||
| L | 77 | 91 | 103 | 111 | 123 | 146 | 178 | 210 | 255 | mm | ||
| D | 30 | 35.5 | 43 | 52 | 62 | 75 | 91 | 106 | 130 | mm | ||
Distinguish between the standard
| PVC Compact Ball Valves Body Type | Cylinder PVC Ball Valve | |

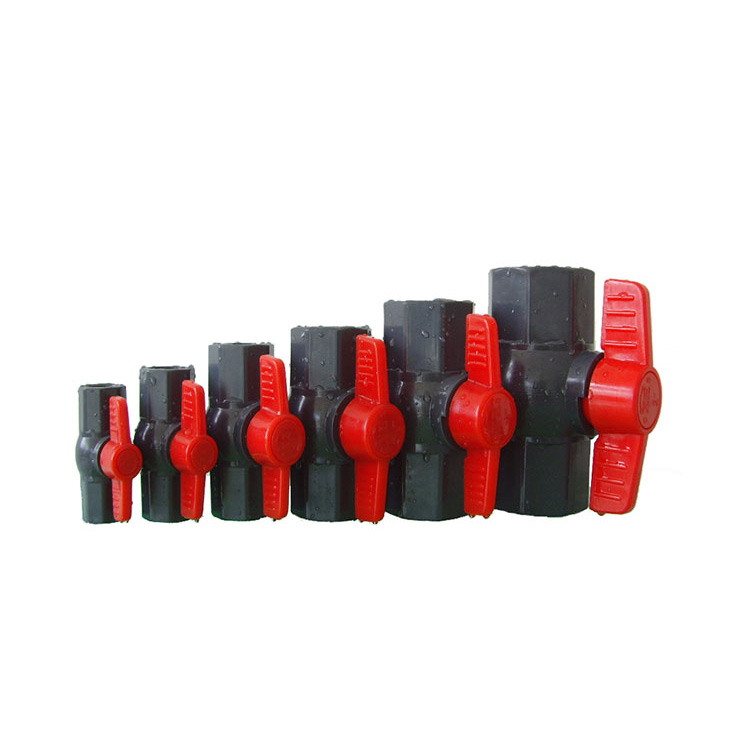

| Octagonal PVC Ball Valve | ||
| PVC Compact Ball Valves Joint End Type | Socket(ANSI/DIN/JIS/BS) PVC Ball Valve | |
| Thread(NPT/BSPT) PVC Ball Valve | ||
| PVC Compact Ball Valves Handle Shape | Butterfly Hollow Shape handle Type PVC Ball Valve | |
| Butterfly Solid Shape Handle Tpye PVC Ball Valve | ||
| Long Quare Shape Handle Type PVC Ball Valve | ||
| Single Circle Shape Handle Type PVC Ball Valve | ||
| Become Warped Shape Handle Type PVC Ball Valve | ||
| Diamond Shape Handle Type PVC Ball Valve | ||
| PVC Compact Ball Valves Standard Type | Thailand Type PVC Compact Ball Valve | |
| Vietnam Type PVC Compact Ball Valve | ||
| Brazil Type PVC Compact Ball Valve | ||
| ANSI PVC Compact Ball Valve | ||
| DIN PVC Compact Ball Valve | ||
| JIT PVC Compact Ball Valve | ||
| BS PVC Compact Ball Valve | ||
| PVC Compact Ball Valves Handle Material | ABS Handle PVC Ball Valve | |
| PVC Handle PVC Ball Valve | ||
| PP Handle PVC Ball Valve | ||
| PVC Compact Ball Valves Body Color | Porcelain White PVC Ball Valve Body | |
| Ivory PVC Ball Valve Body | ||
| White PVC Ball Valve Body | ||
| Grey PVC Ball Valve Body | ||
| Brown PVC Ball Valve Body | ||
| Blue PVC Ball Valve Body | ||
| Customization PVC Ball Valve Body Color | ||
| PVC Compact Ball Valves Handle Color | Orange Handle PVC Ball Valve | |
| Red Handle PVC Ball Valve | ||
| Blue Handle PVC Ball Valve | ||
| Customization PVC Ball Valve Handle Color | ||
| PVC Compact Ball Valves LOGO Printing Mode | PVC Ball Valve Laser Logo | |
| PVC Ball Valve Printing Logo | ||
| PVC Ball Valve Carve Logo | ||
| PVC Ball Valve Label Paper Logo | ||
| Customization PVC Ball Valve Logo | ||
| PVC Compact Ball Valves Packing Material | PVC Ball Valve White Box Packing | |
| PVC Ball Valve Color Box Packing | ||
| PVC Ball Valve Plastic Bag Packing | ||
| PVC Ball Valve Non Fumigation Pallets Packing | ||
| Customization PVC Ball Valve Packing Material | ||
